Product Introduction：

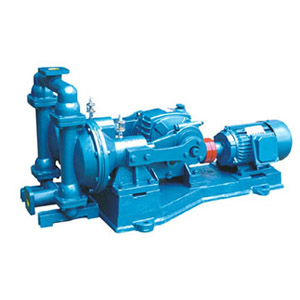

This series of diaphragm pump is the latest type at home currently. It can be used to pump and suck up all liquids including various corrosive liquids, volatile, inflammable, explosive and virulent liquids with grains and high viscosity, ceramic glaze slurry, berry and glue or for the bottom oil recovery of oil tanker and temporary tank dumpin. Its performance parameters are similar as those of German WLLDENPUMPS and America MARIOWPUMPS. The flow-through parts of the pump body adopt four kinds of material:stainless steel, fluorine rubber, neoprene and Chemigum fluorine rubber,neoprene and Chemgium fluorine lining.
Type Designation：
DBY – 40
DBY - Diaphragm pump；
40 - Diameter of pump outlet and inlet(mm)
Technology Parameters：
Flow：0-20m3/h；
Head：30m；
Power：0.37-4kw；
Rotary speed：1450r/min；
Calibre：10-100mm；
Temperature ：-15-+150℃；
Self-priming high：5-7m。
| Series |
Type |
Inlet diameter(mm) |
Capacity(m3/h) |
Head(m) |
Suction stroke(m) |
Max diameter of granules allowed(mm) |
Motor horsepower(kw) |
| DBY |
DBY-10 |
10 |
0.5 |
30 |
3 |
1 |
0.55 |
| DBY-15 |
15 |
0.75 |
30 |
3 |
1 |
0.55 |
| DBY-25 |
25 |
3.5 |
30 |
4 |
2.5 |
1.5 |
| DBY-40 |
40 |
4.5 |
30 |
4 |
4.5 |
2.2 |
| DBY-50 |
50 |
6.5 |
30 |
4.5 |
8 |
4 |
| DBY-65 |
65 |
8 |
30 |
4.5 |
8 |
4 |
| DBY-80 |
80 |
16 |
30 |
5 |
10 |
5.5 |
| DBY-100 |
100 |
20 |
30 |
5 |
10 |
5.5 |
|
